SIEMENS

spring operated
vacuum breaker

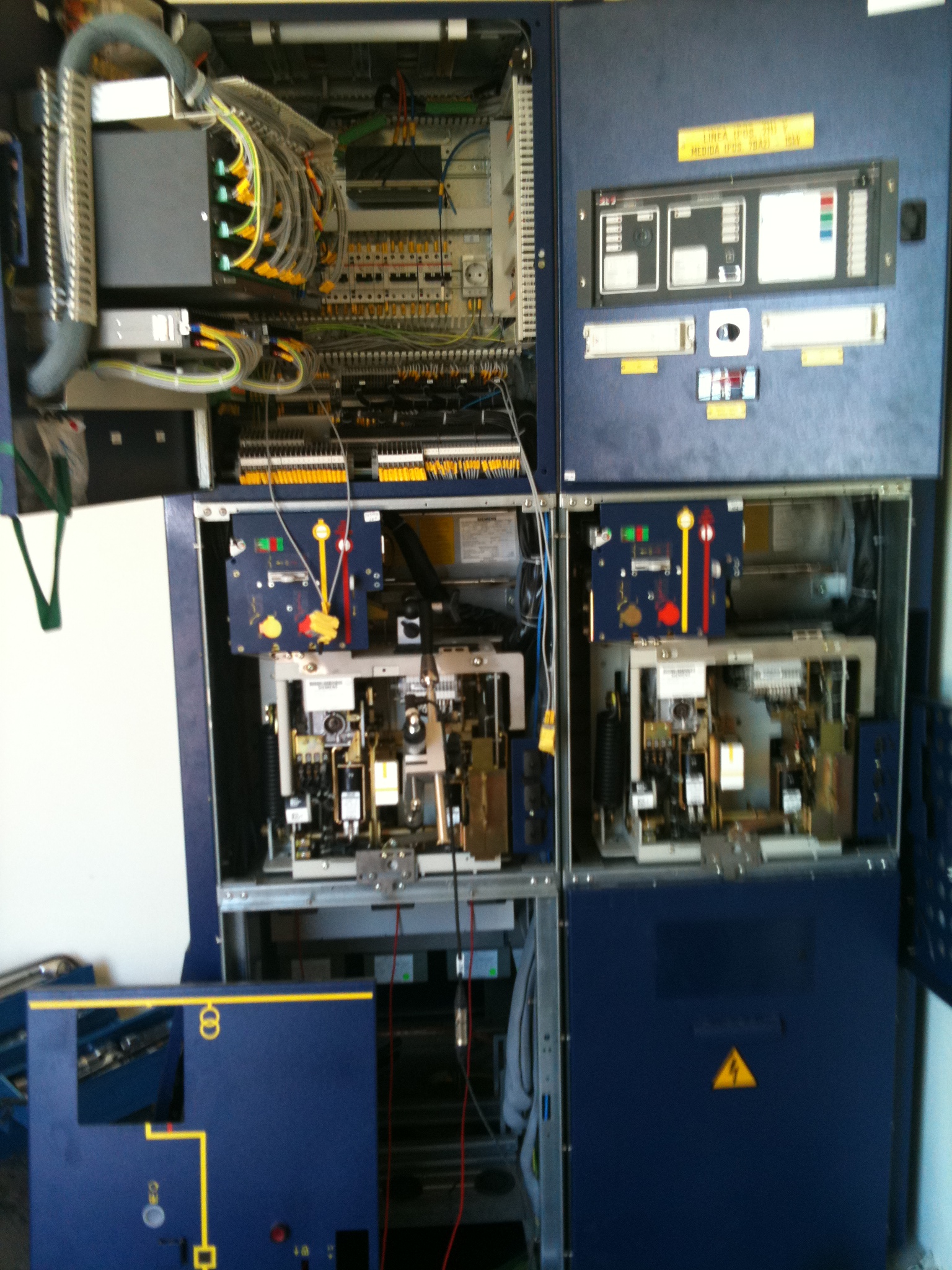

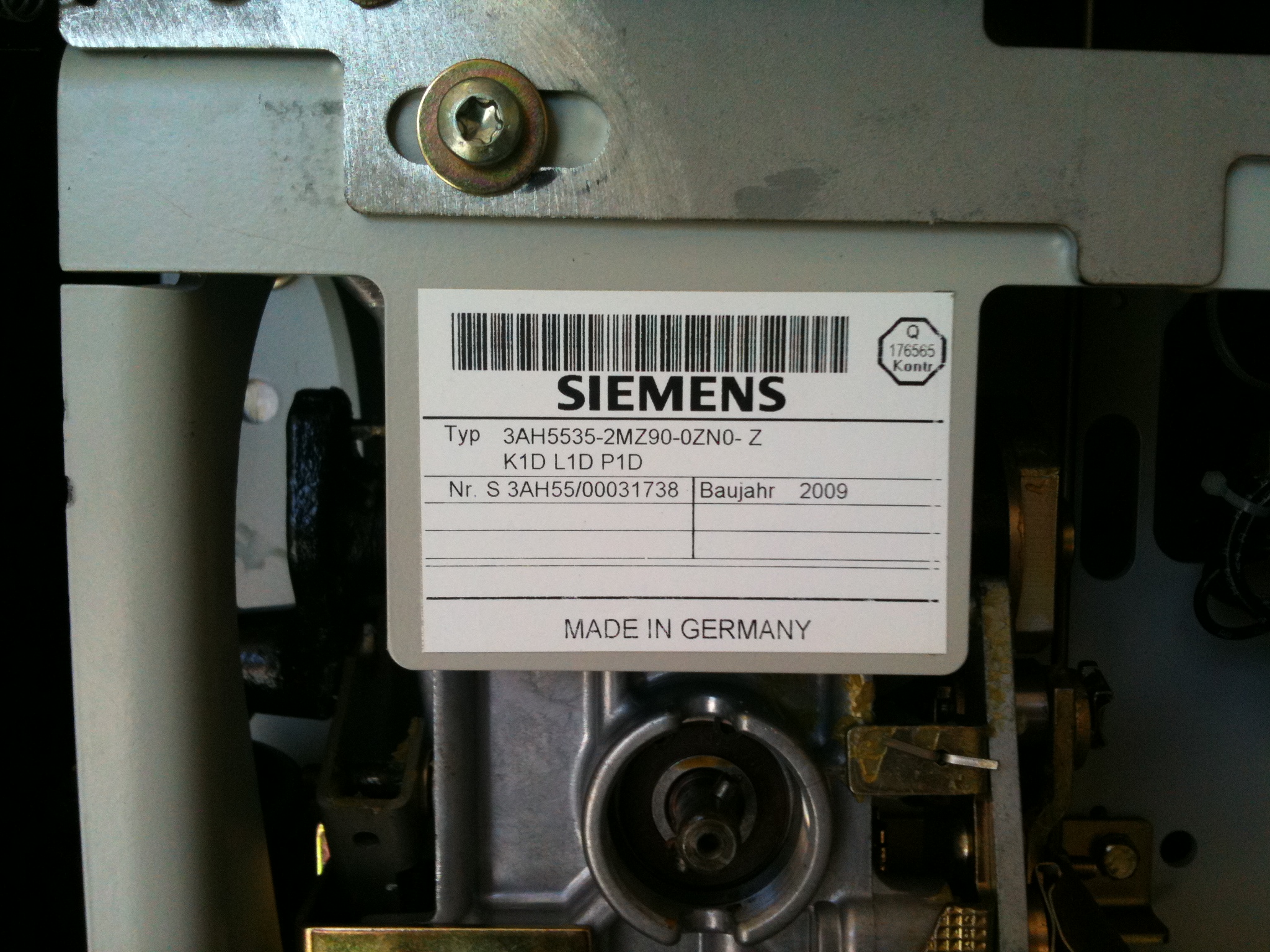

3AH5535-2MZ90-0ZN0-Z

In 1250A
Sh cir 25 kA
U 15 kV

manual.pdf

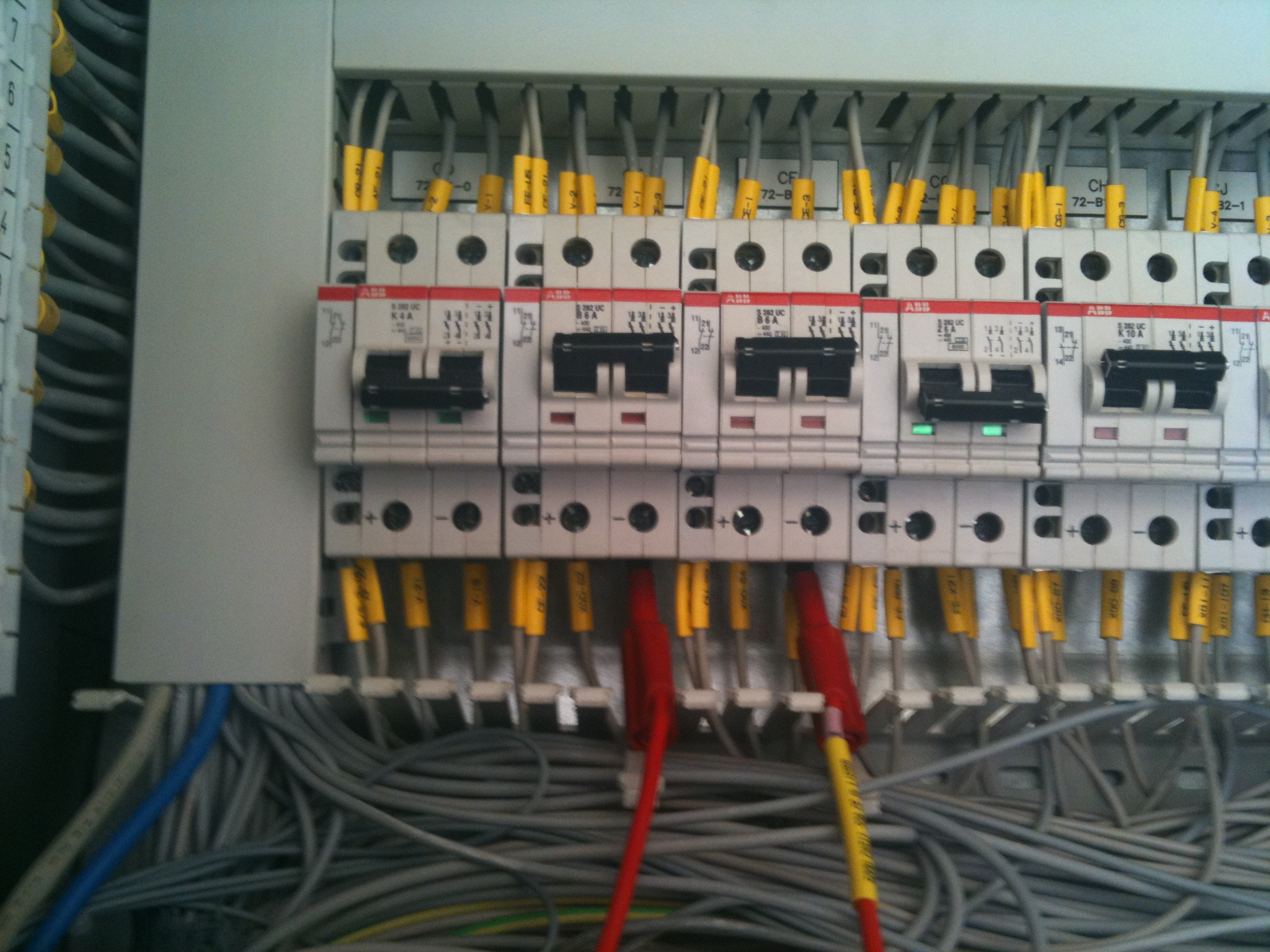

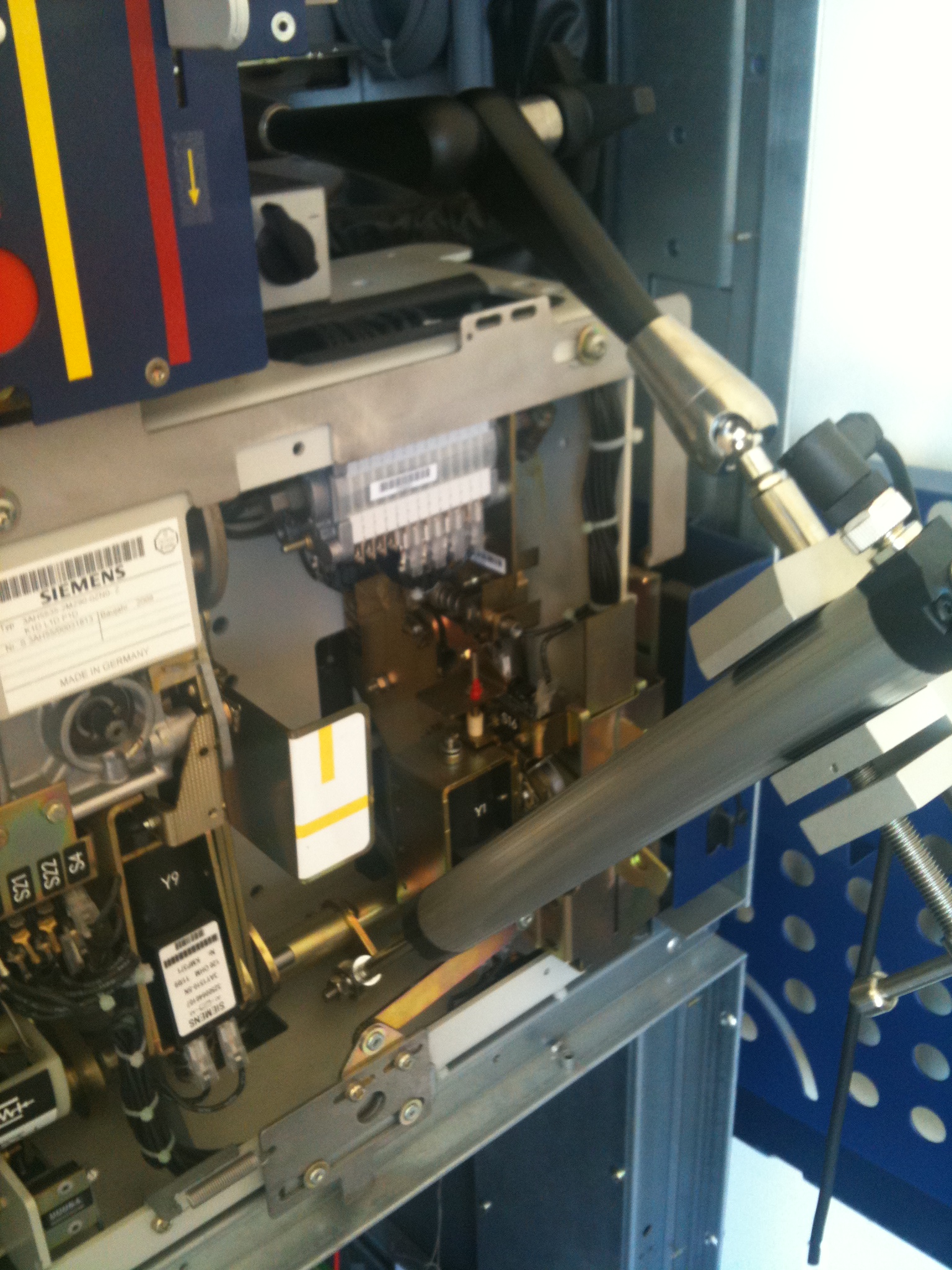

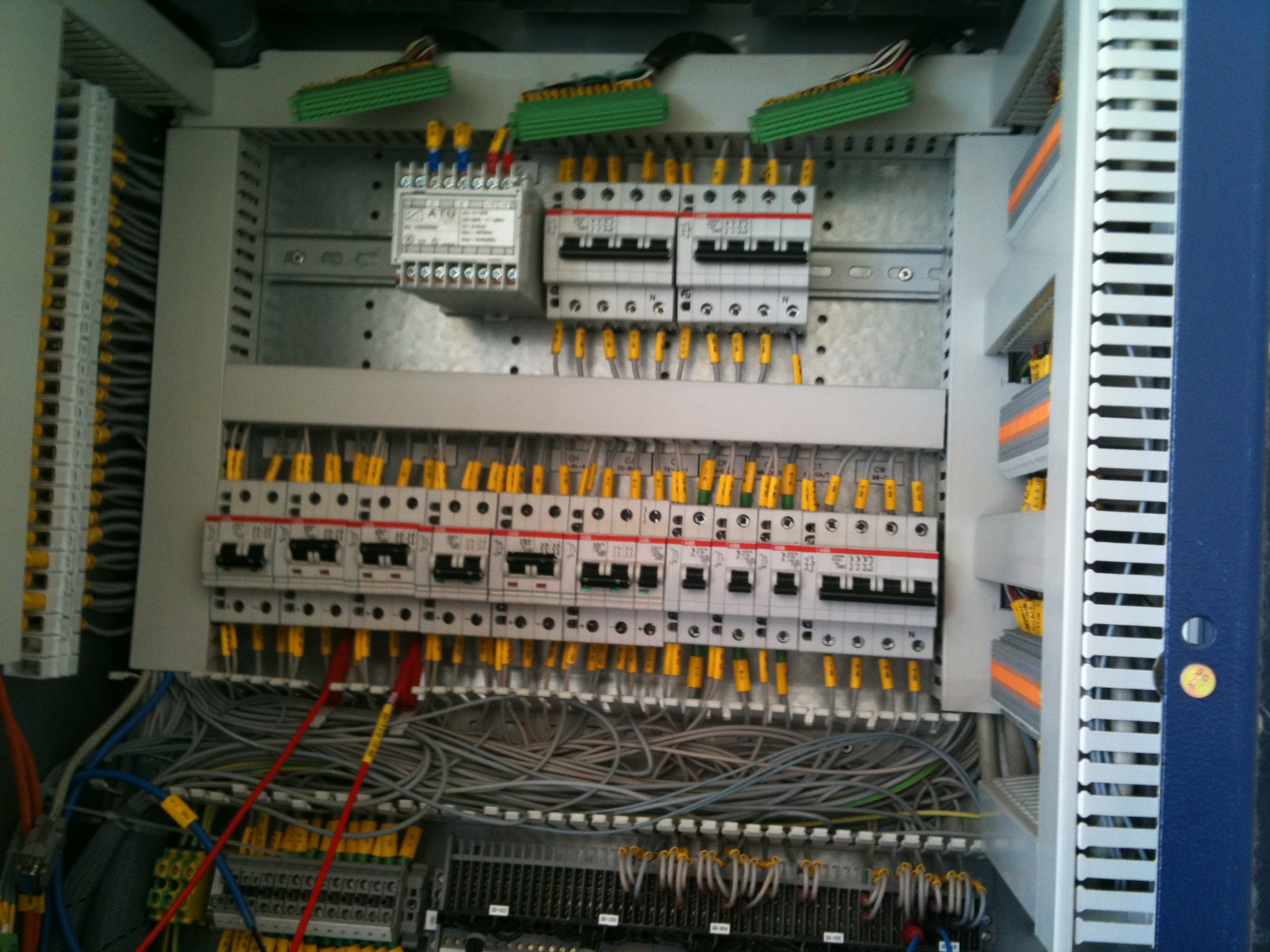

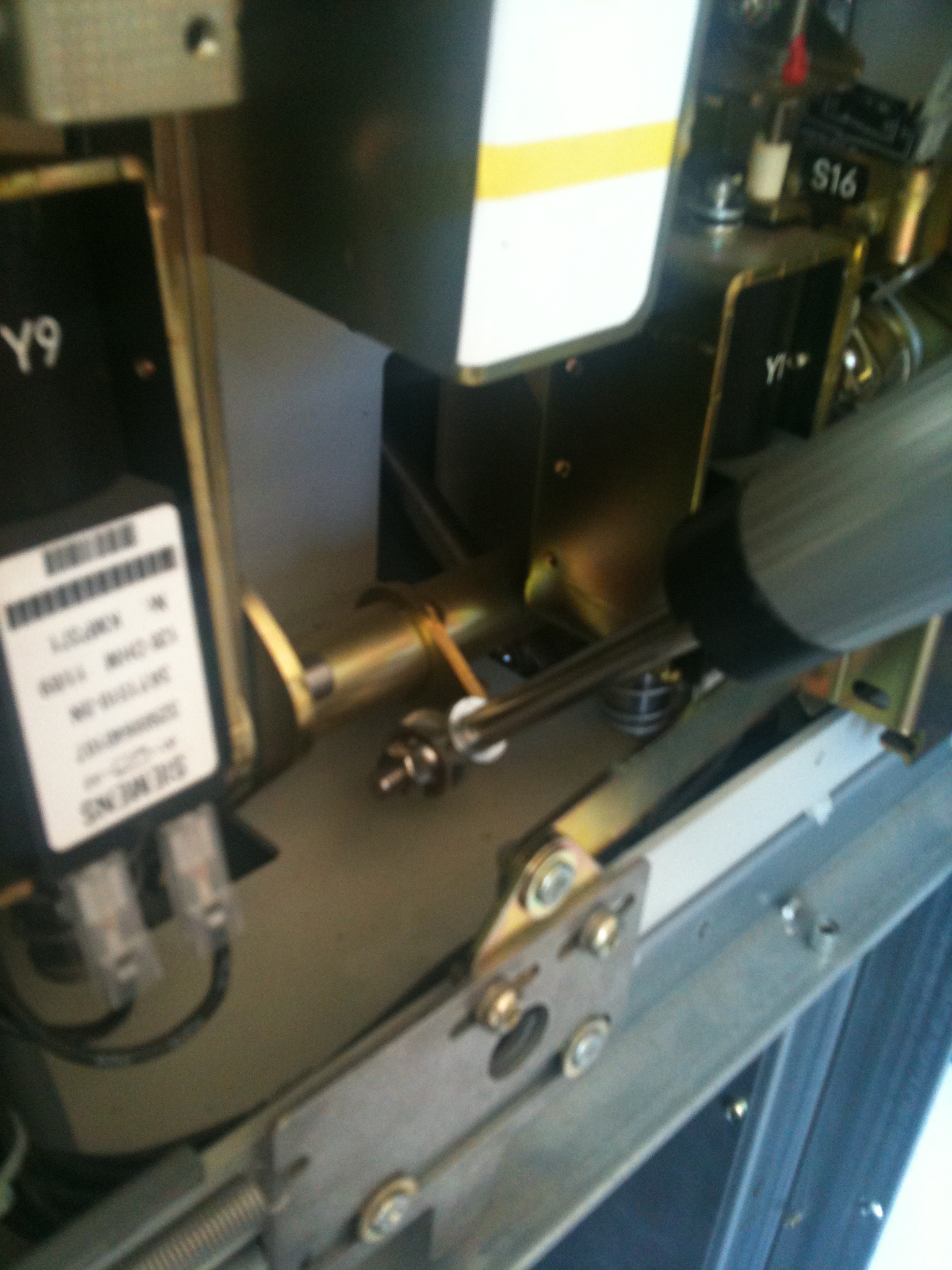

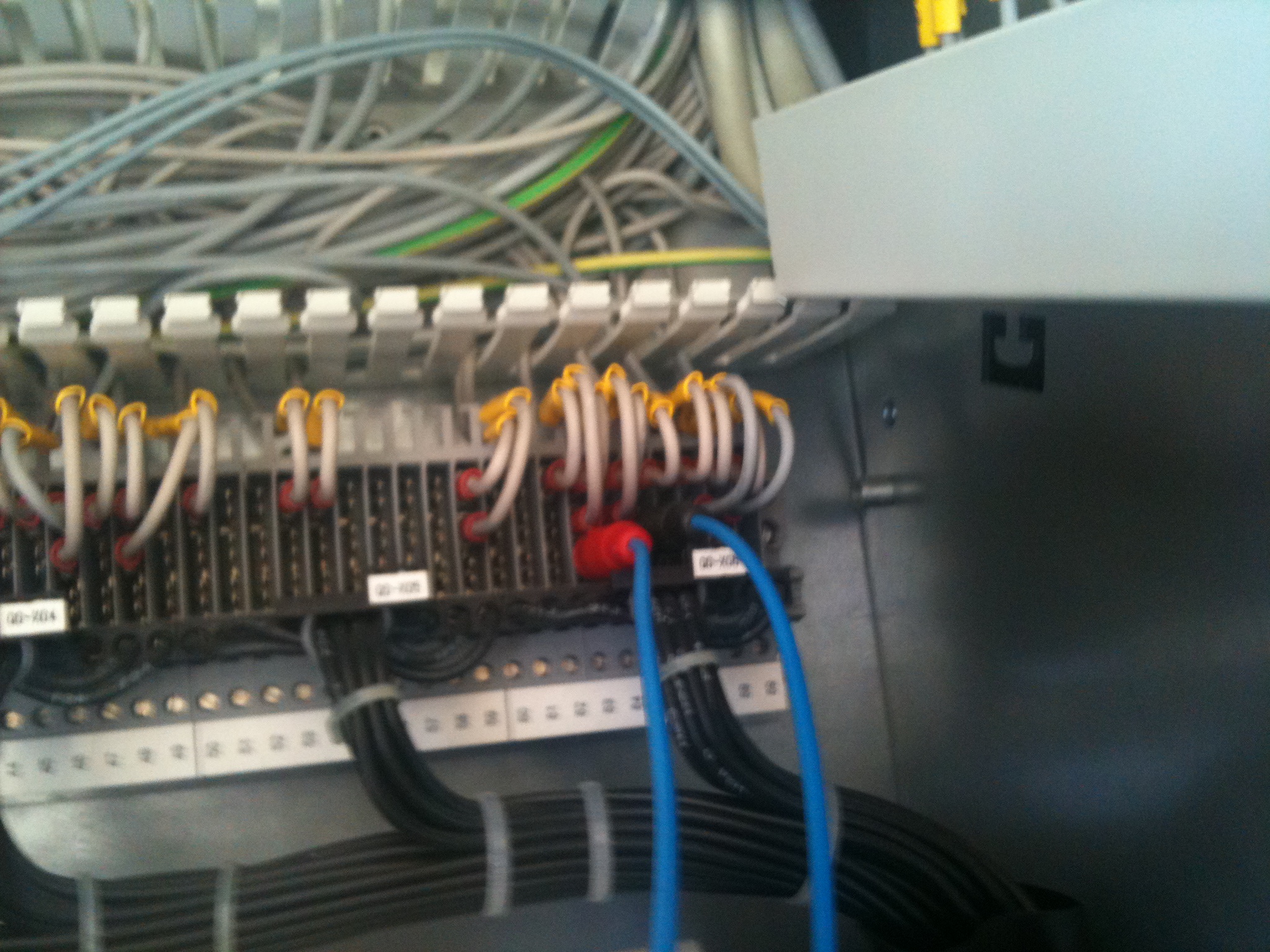

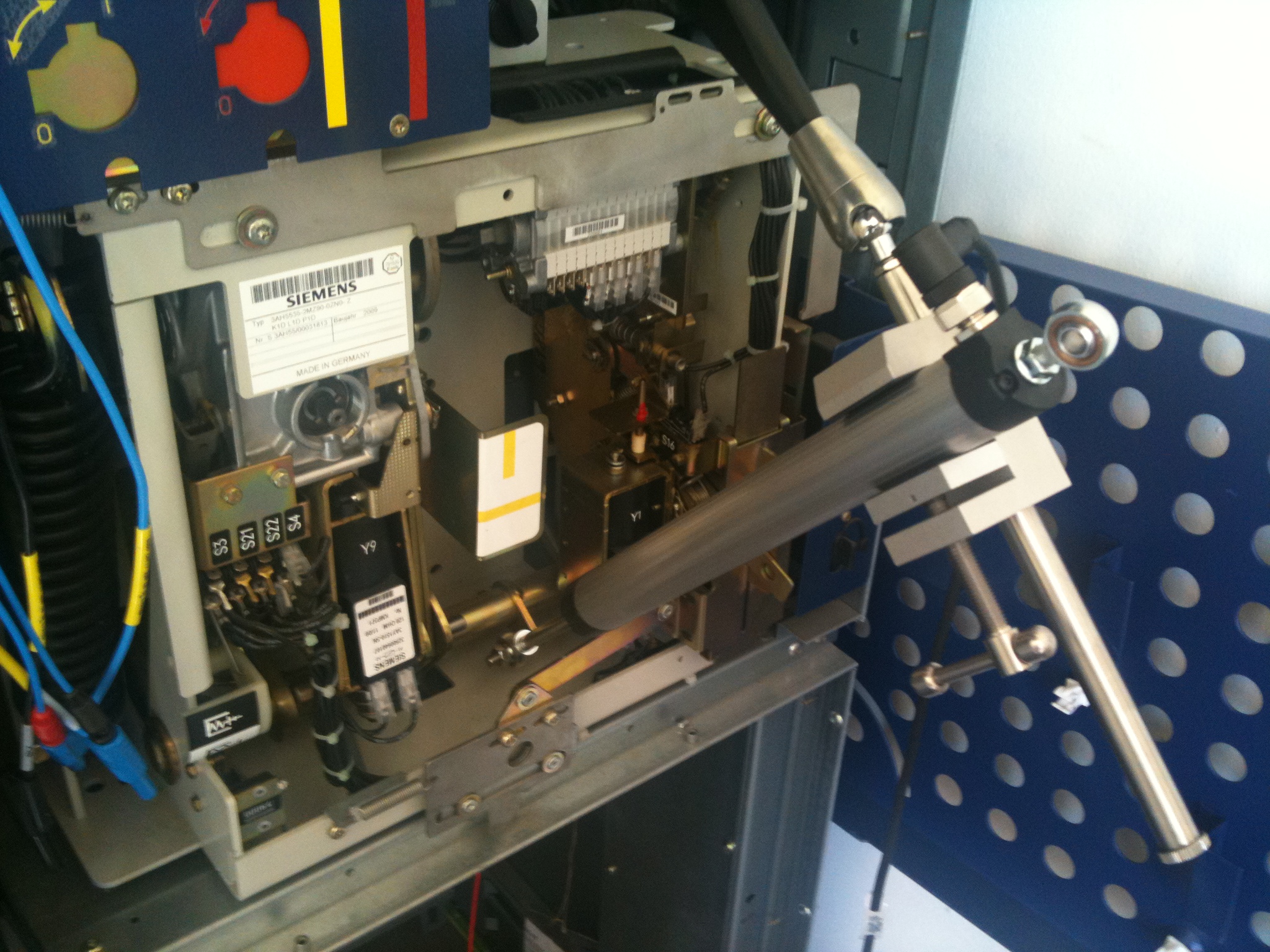

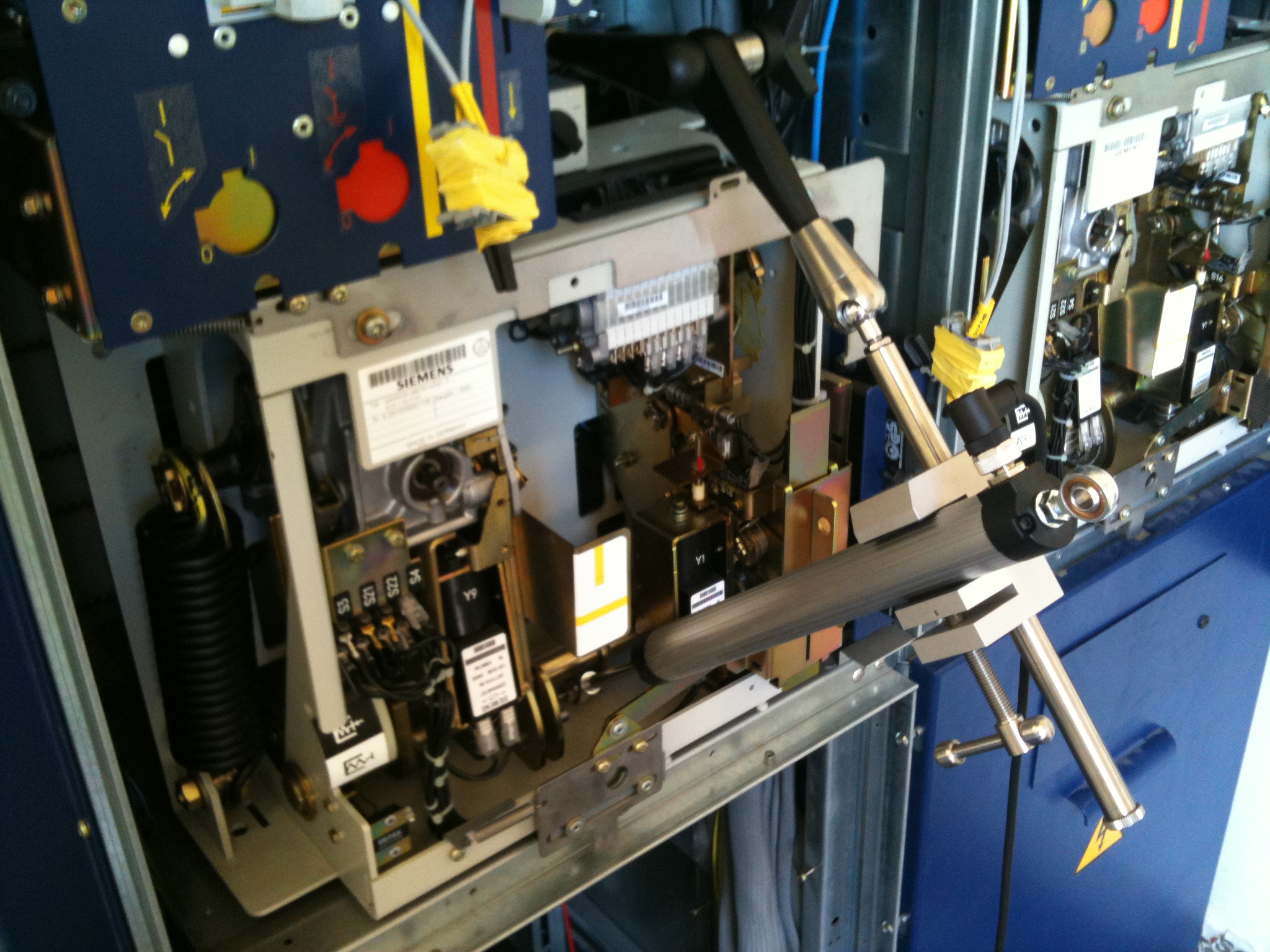

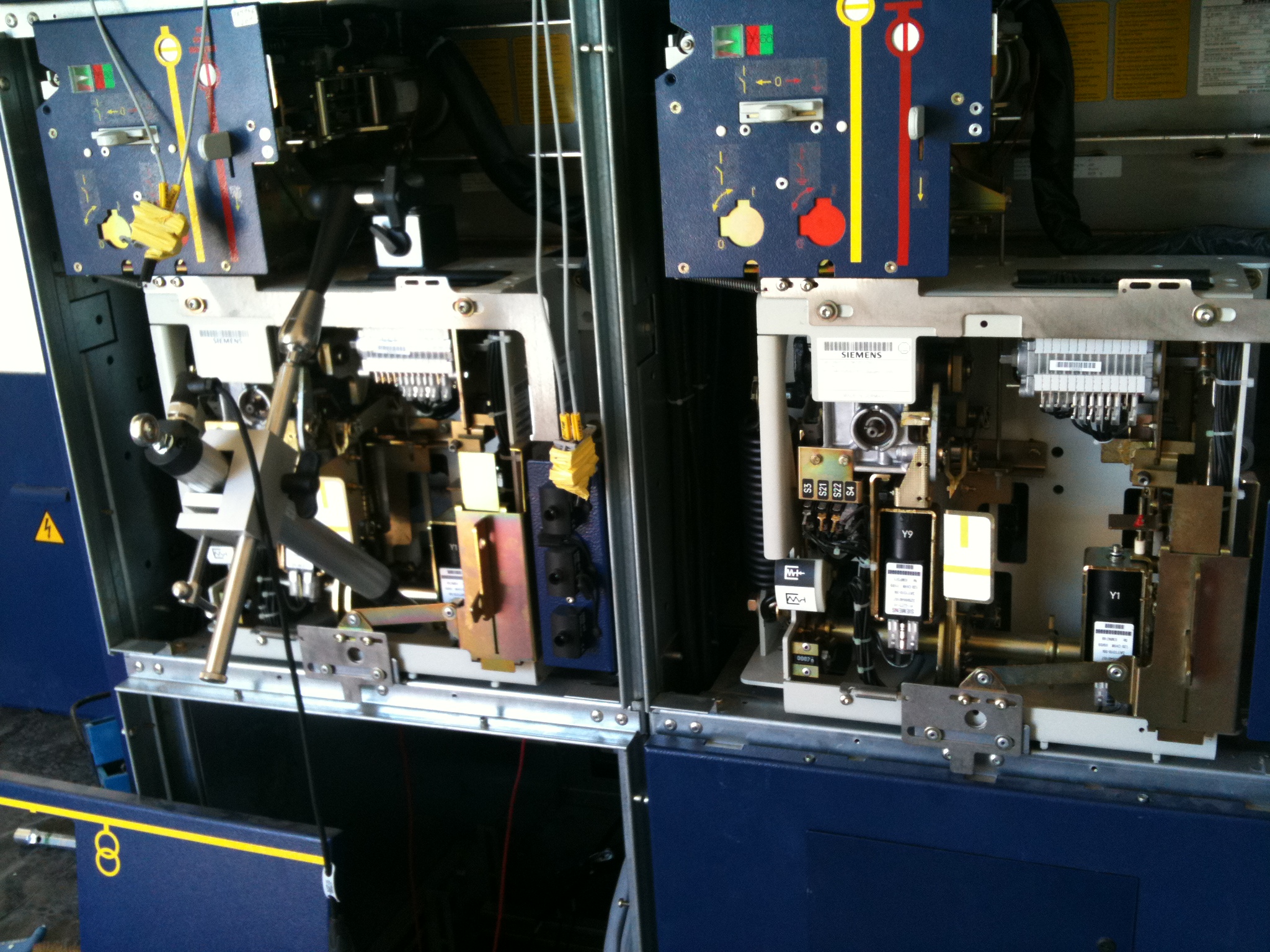

Motion transducer 1mm at transducer is ?mm at contacts not linear motion - swings

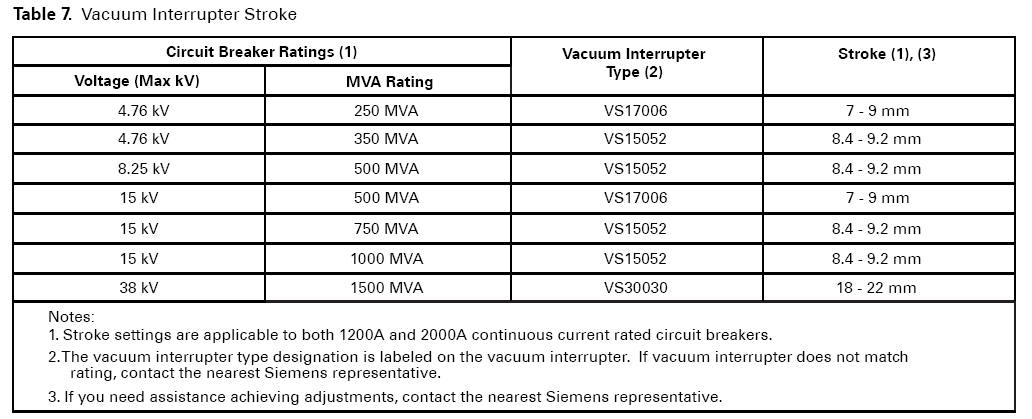

Travel ?mm
Spring charging 15A max,  In= 3 A 3.5 sec
Velocity open 7.1 - 7.8 ?? m/s Contact open to 10ms
Velocity close 4.5 - 5.3 ?? m/s 10 ms to contact open
Timing Open 5 cycles ? ms
Timing Close Less than ?? ms ? ms
