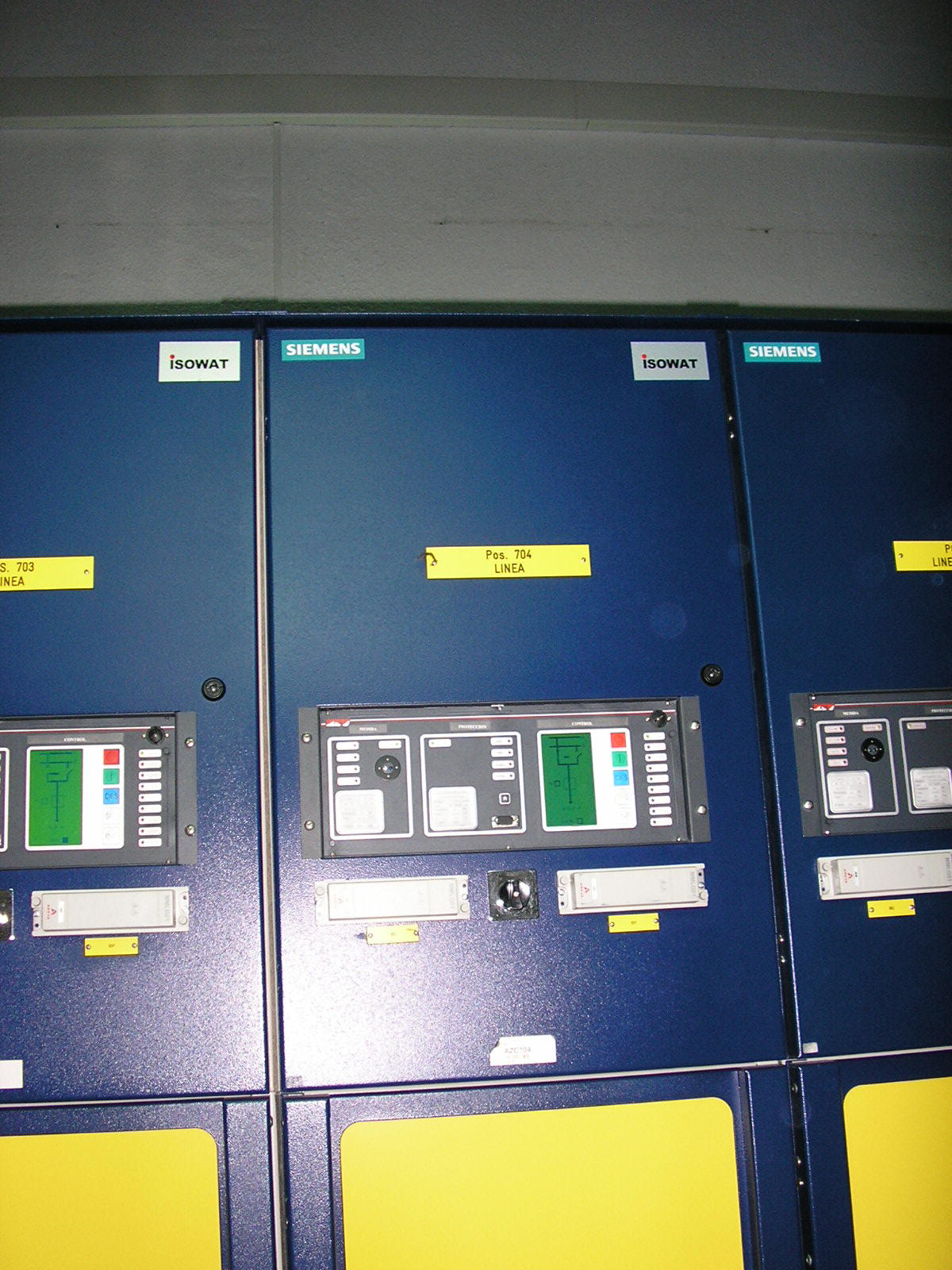

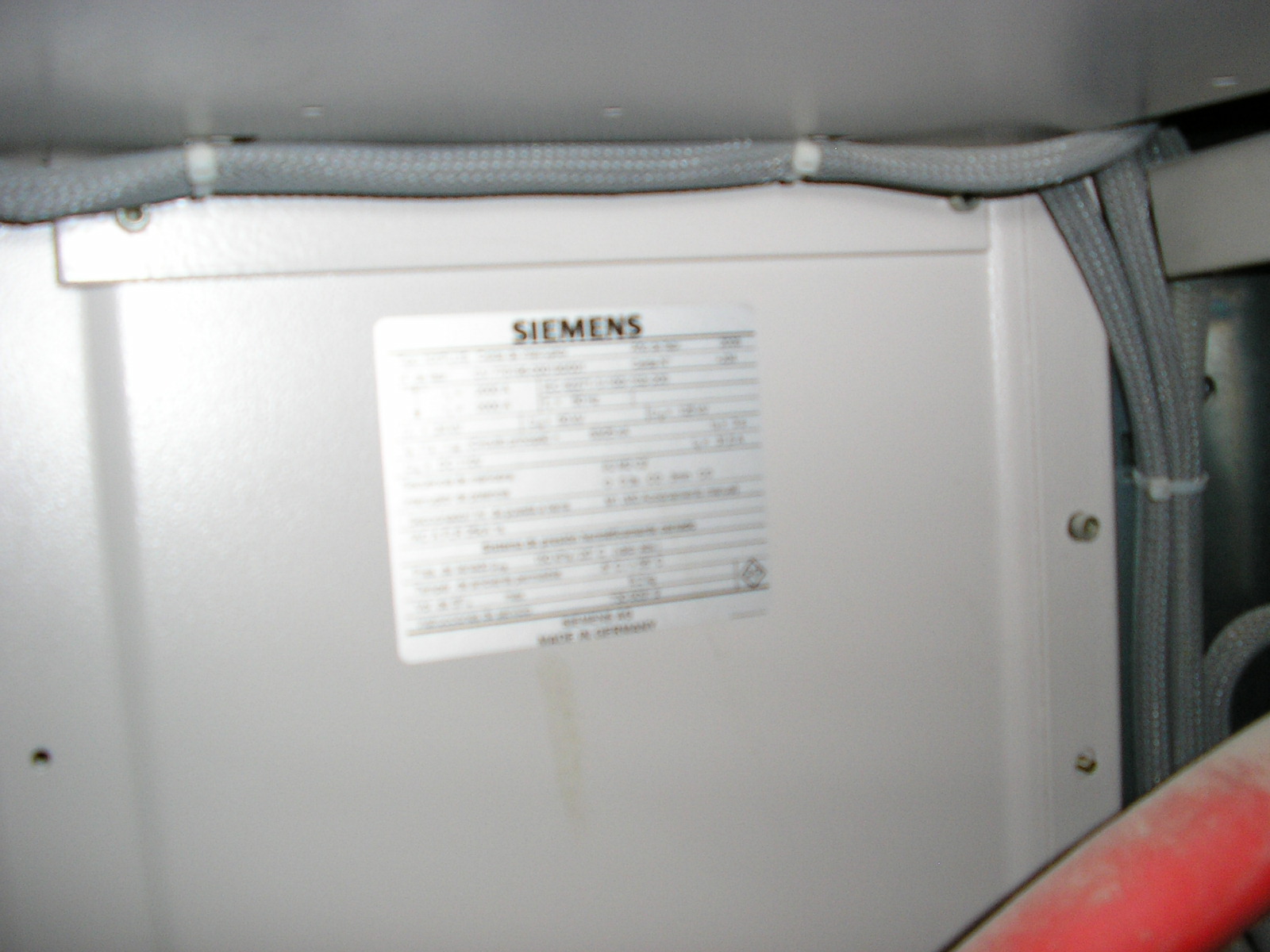

SIEMENS

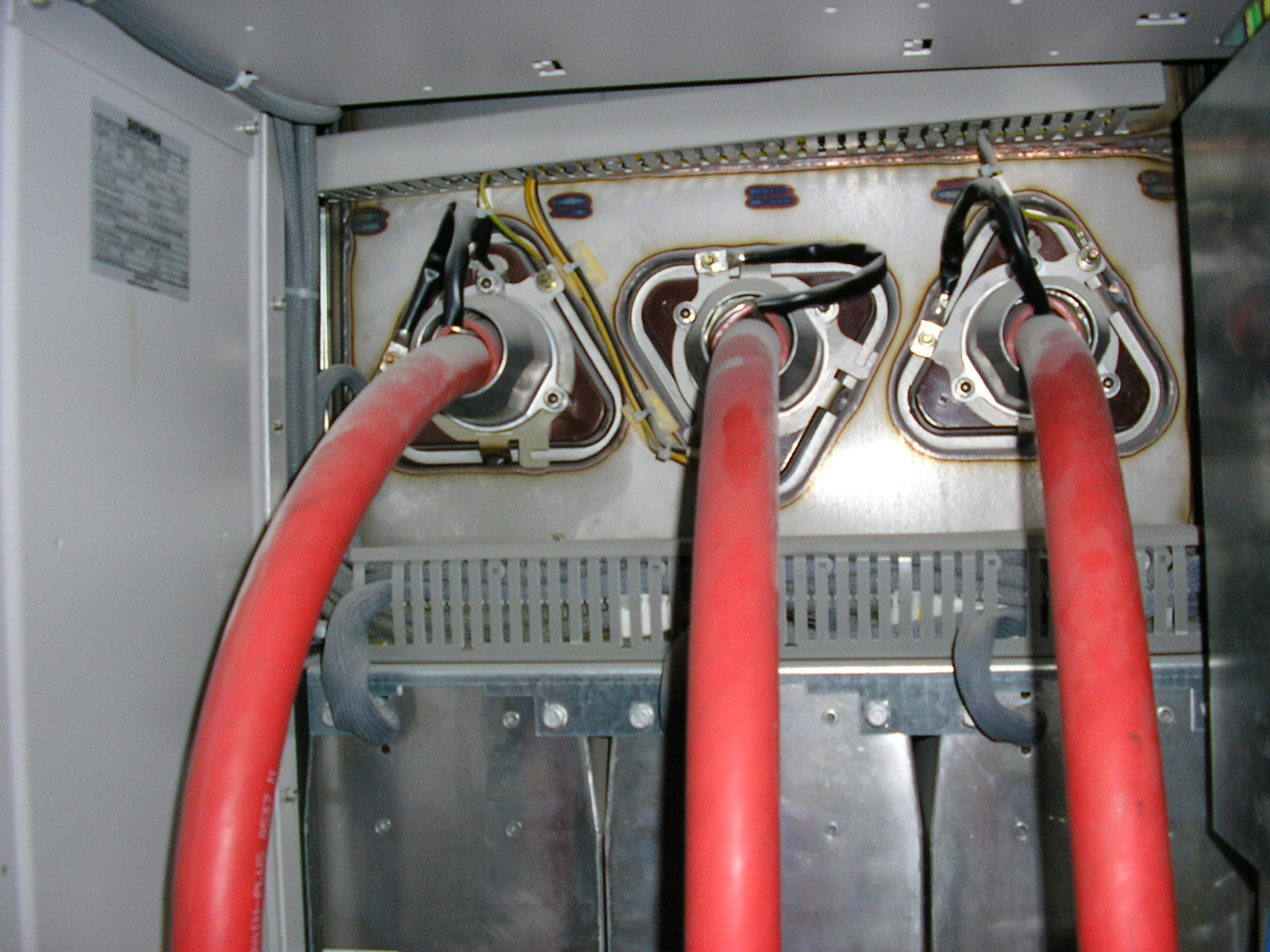

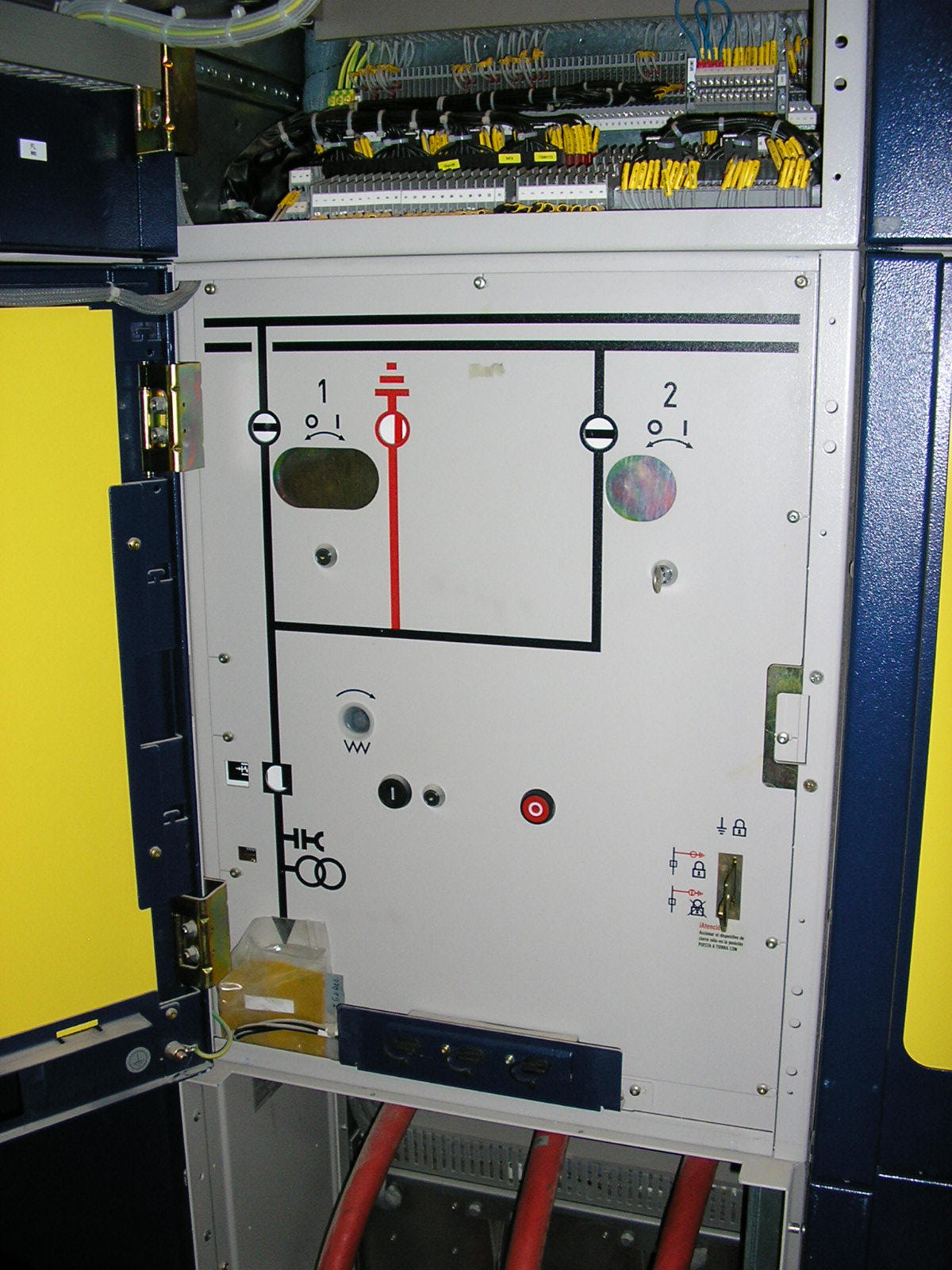

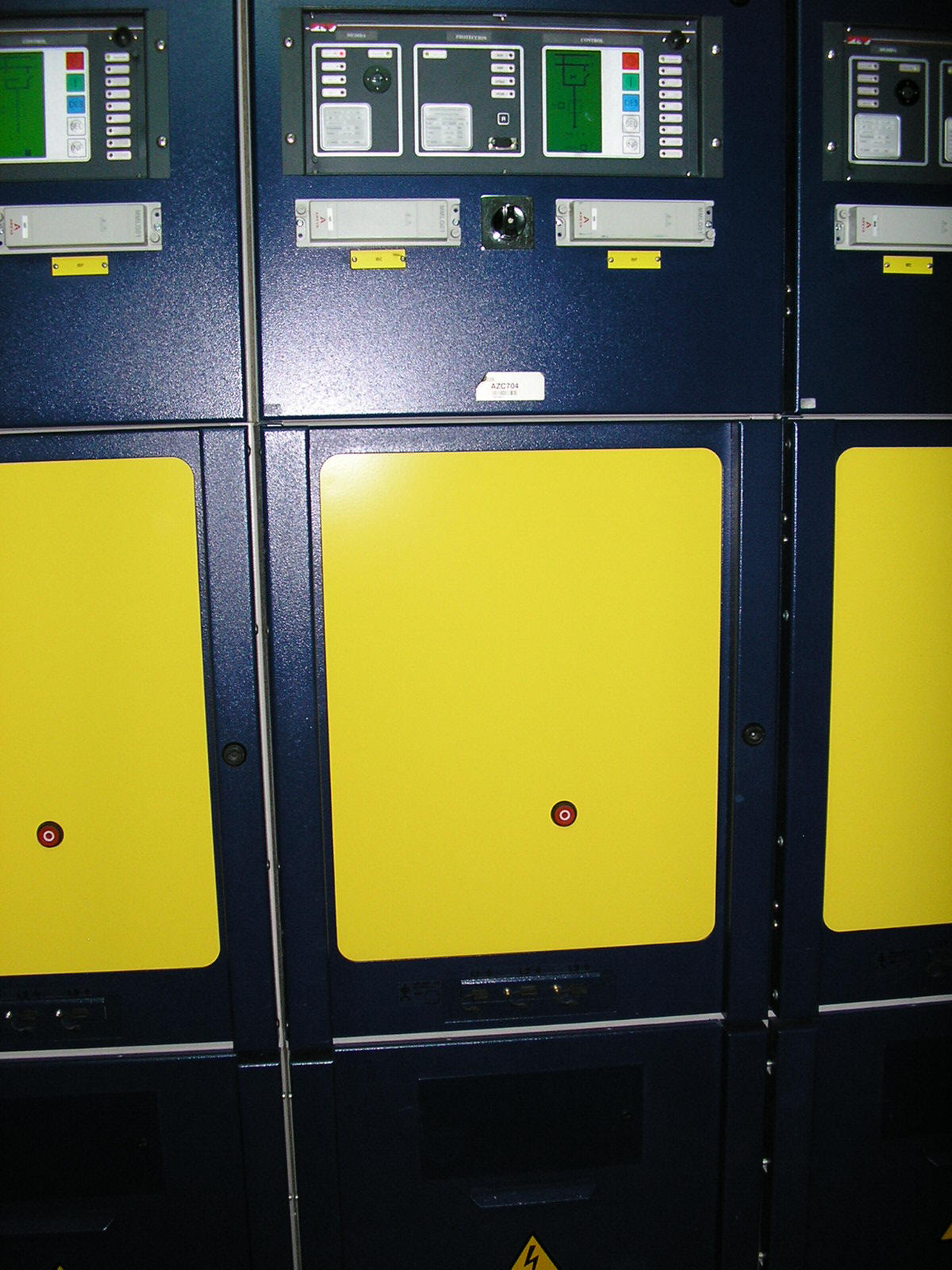

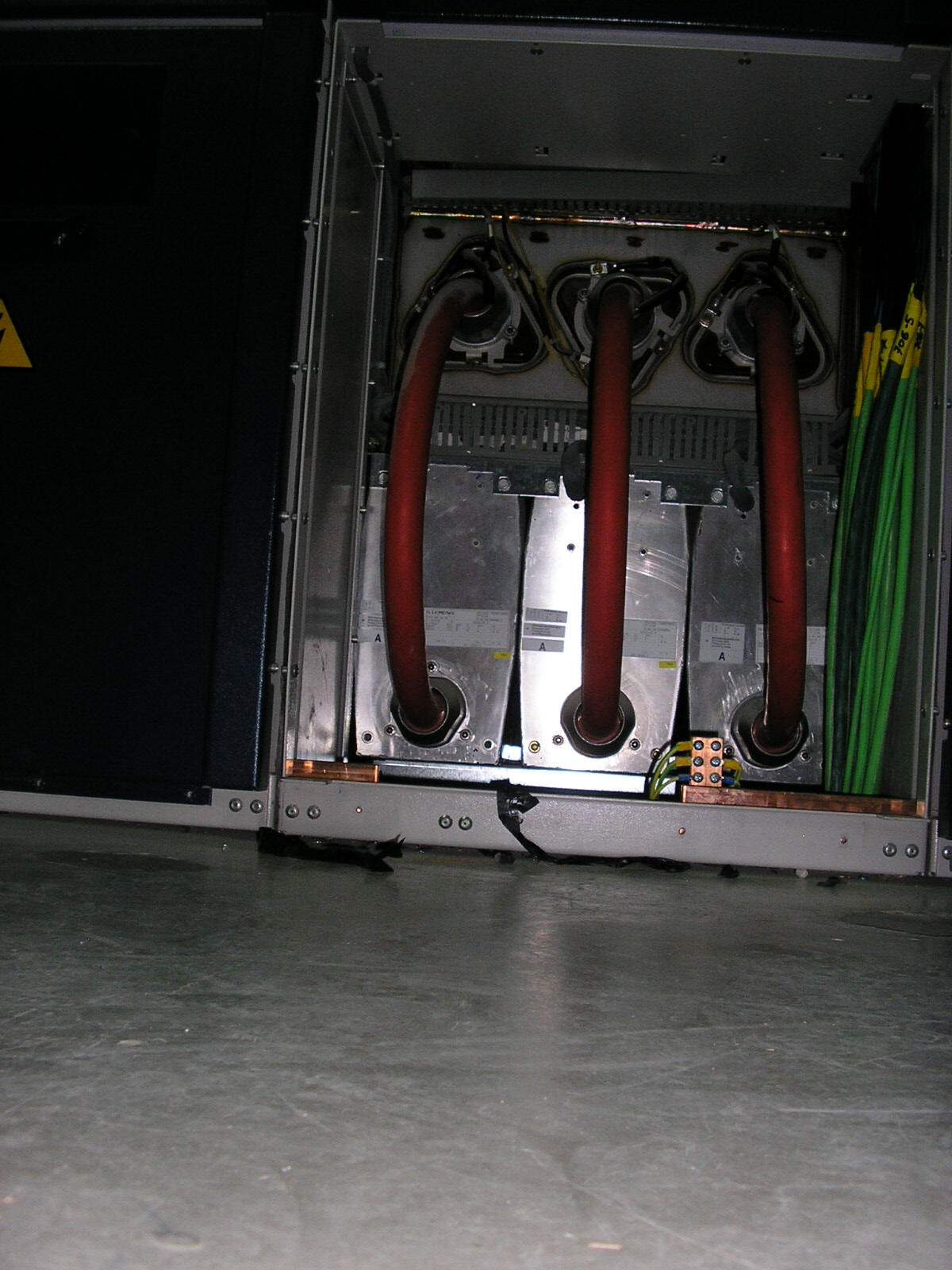

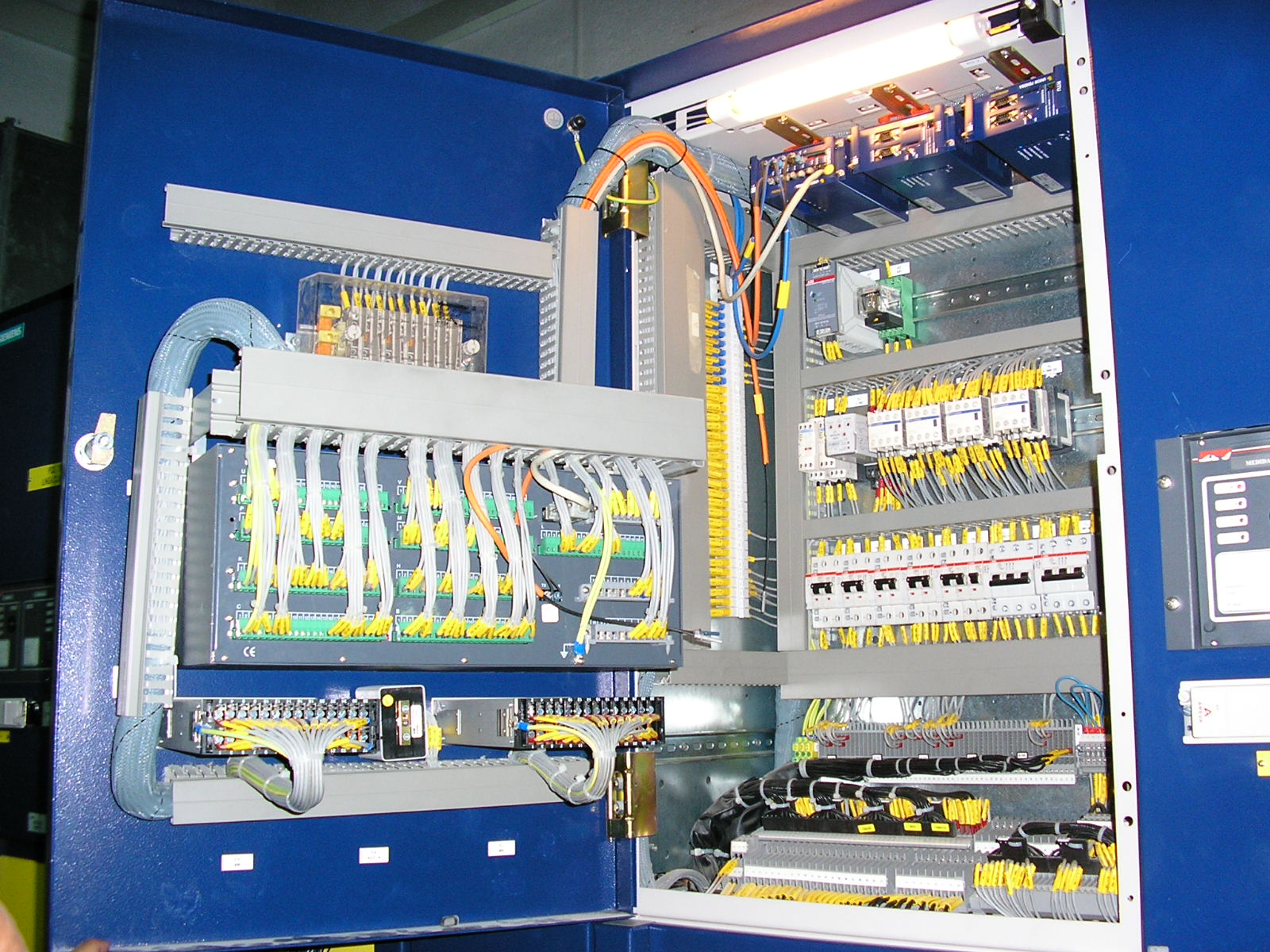

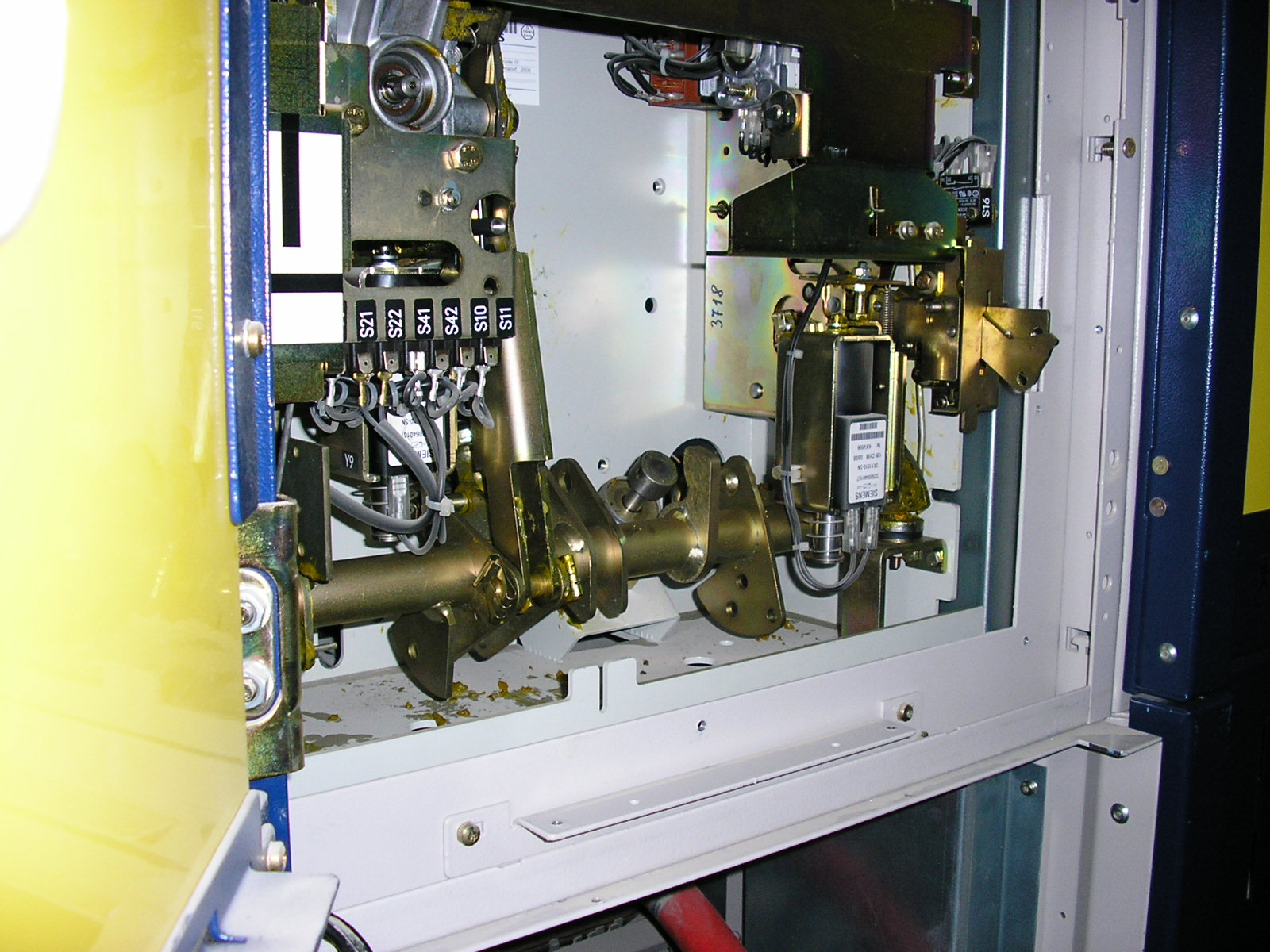

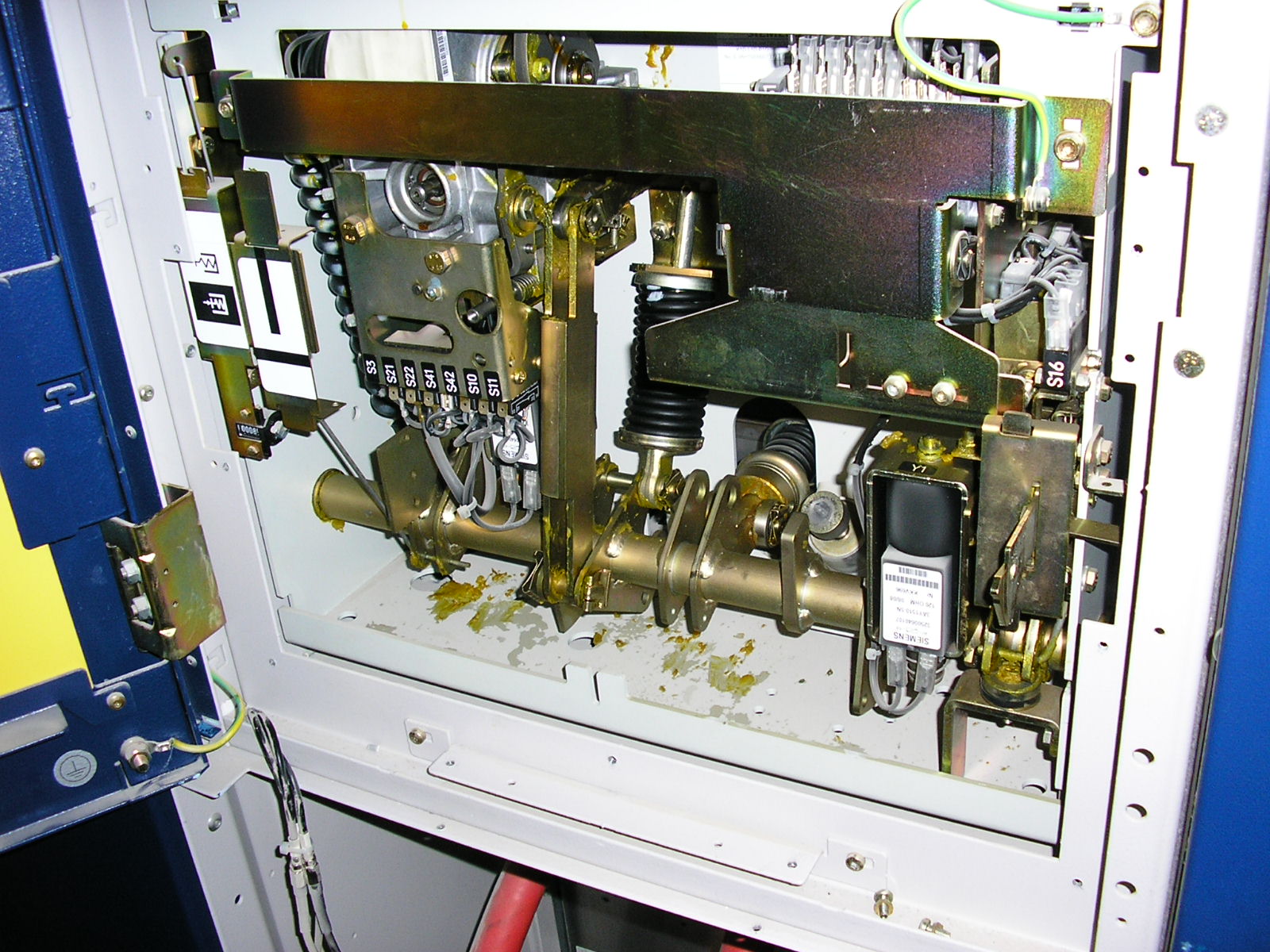

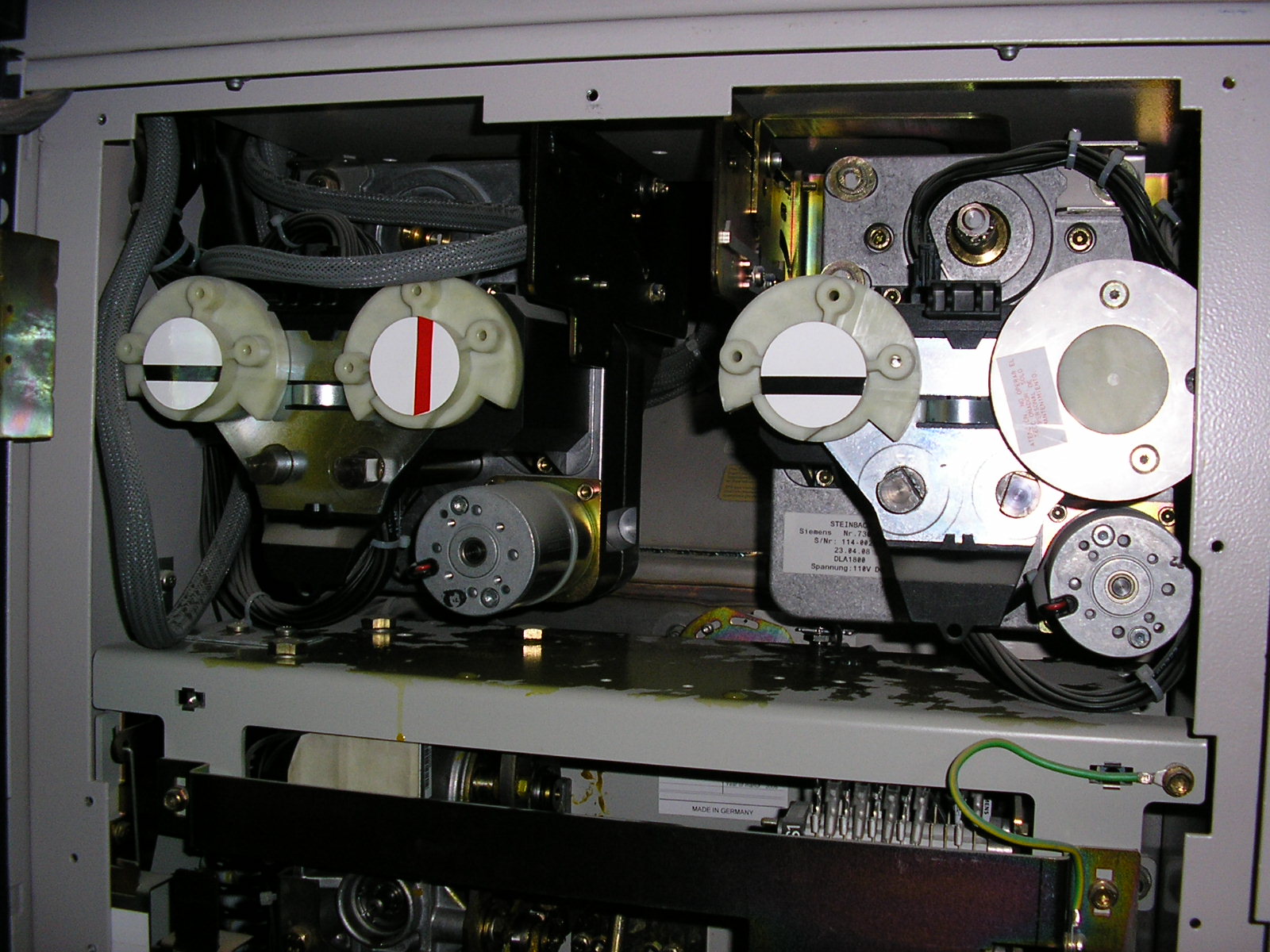

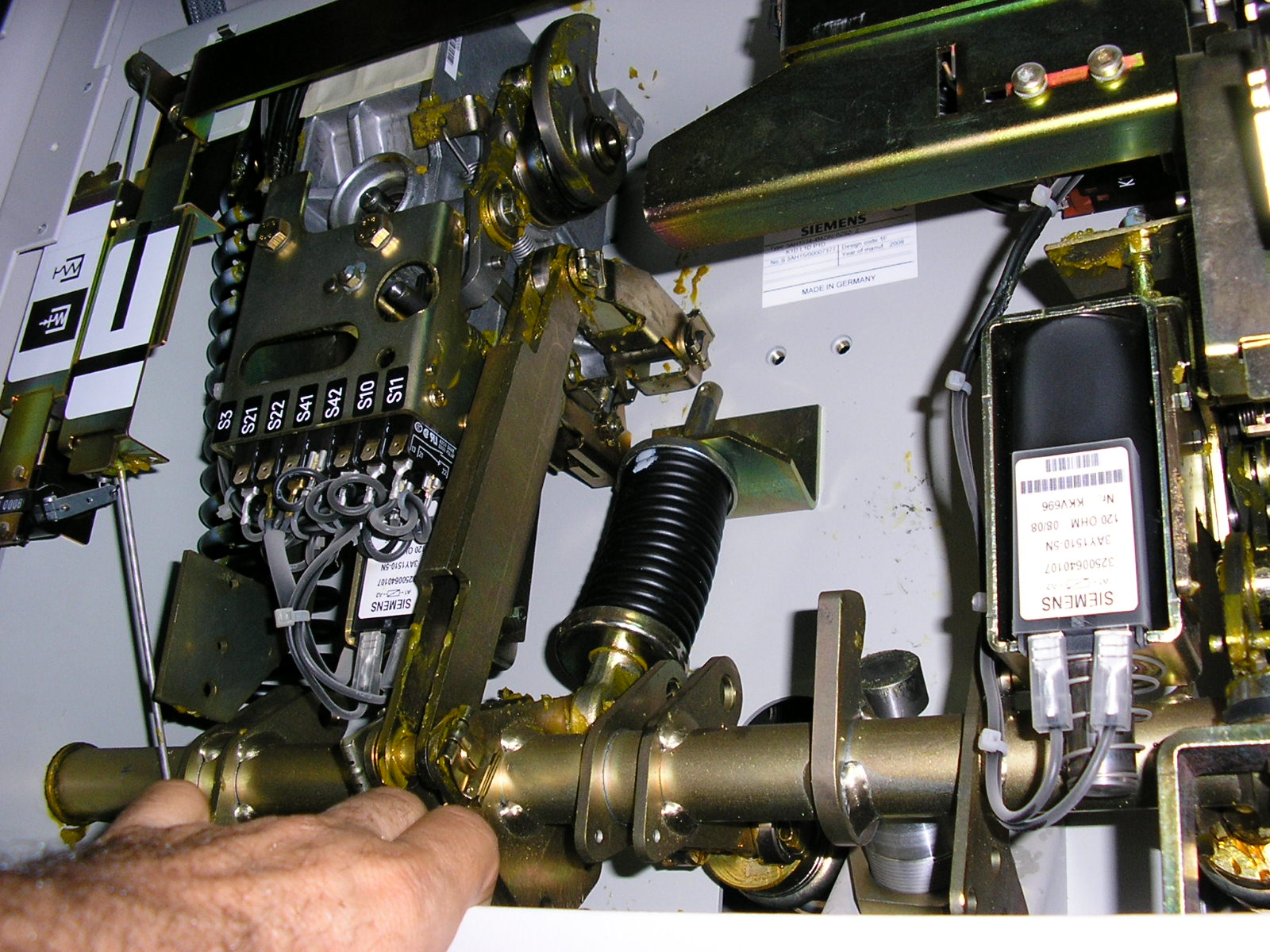

spring operated
vacuum breaker
3AH-1534-2MZ90-0ZS2-Z
I 1250A
travel nominal
100 mm
travel electric
412 mm
sh cir 25 kA
U 15 kV

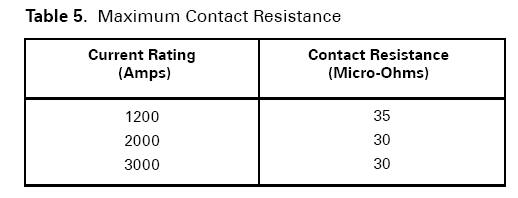

| Motion transducer | 235mm at transducer is 90 deg | adapter dimensions |
| Travel | 235mm +/- 3 mm | |
| Spring charging | 358-360 deg | |
| Velocity open | 7.1 - 7.8 m/s | Contact open to 10ms |
| Velocity close | 4.5 - 5.3 m/s | 10 ms to contact open |
| Timing Open | 17-23 ms | 2 ms |
| Timing Close | Less than 80ms | 3 ms |
|
|
|
|
|
|
|
|
|
|
|
||||
