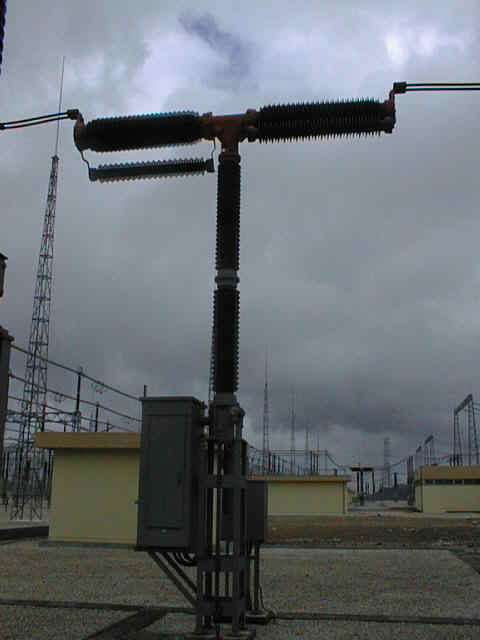

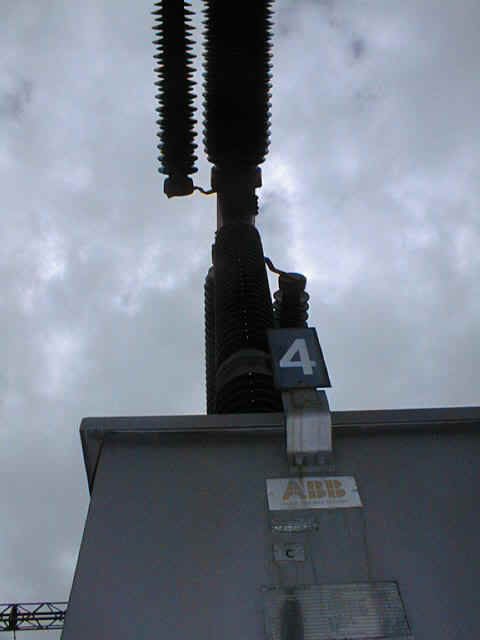

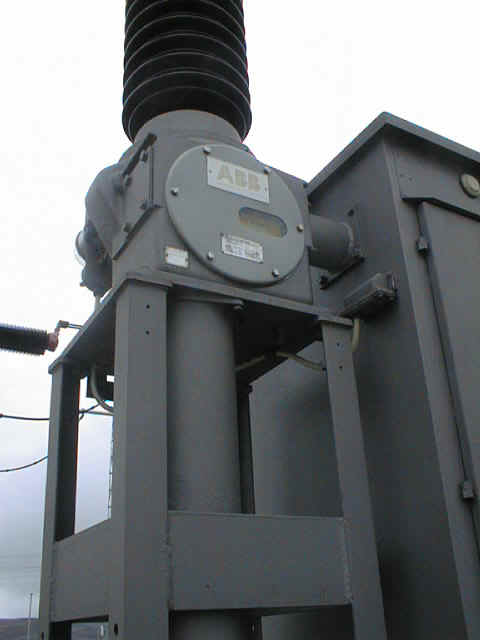

ABB HPL 420  Breaker

Motion transducer - main 235mm at transducer is 90 deg M12 main adapter dimension
Travel 235mm +/- 3 mm M8 shock absorber adapter dim.
Spring charging 358-360 deg
Velocity open 7.1 - 7.8 m/s Contact open to 10ms
Velocity close 4.5 - 5.3 m/s 10 ms to contact open
Timing Open 17-23 ms 2 ms module / 3 ms phase
Timing Close Less than 80ms 3 ms module / 4 ms phase
